Eaton Tripp Lite Series 16-Port Rack Console KVM Switch 19" LCD PS2/USB Cables 1U

KVM-konsoll med KVM-svitsj - 16 porter - 19" - kan monteres i rack - 1280 x 1024 @ 75 Hz - VGA - svart - 1U
Ikke på lager
Produsent Eaton
Artnr B020-U16-19-K
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Space savings with 1U 19-inch, rack-mount drawer design
    • Features 17-inch LCD TFT active-matrix, color panel
    • Supports resolutions of up to 1280 x 1024
    • Works with any KVM Switch with PS/2 console ports
    • Sleep mode when the monitor cover is closed
    • Installs quickly and easily

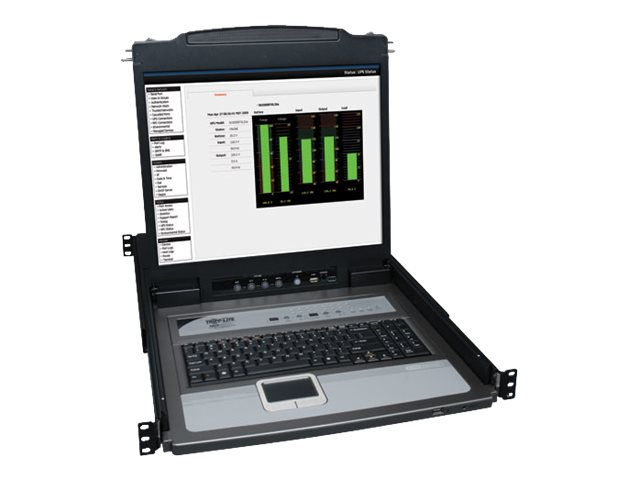

    Tripp Lite's B020-U16-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers. Increase the number of connected computers to up to 264 by daisy-chaining up to 31 B022-U08 KVM switches.

    The B020-U16-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

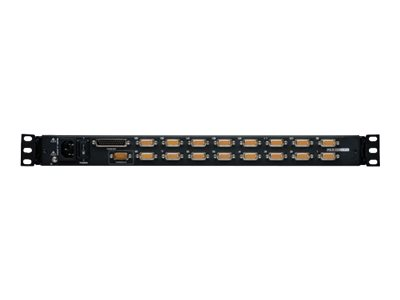

    The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U16-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
  • Spesifikasjon
  • Tilbehør
  • Nedlastbare filer

Anbefalt tilbehør
